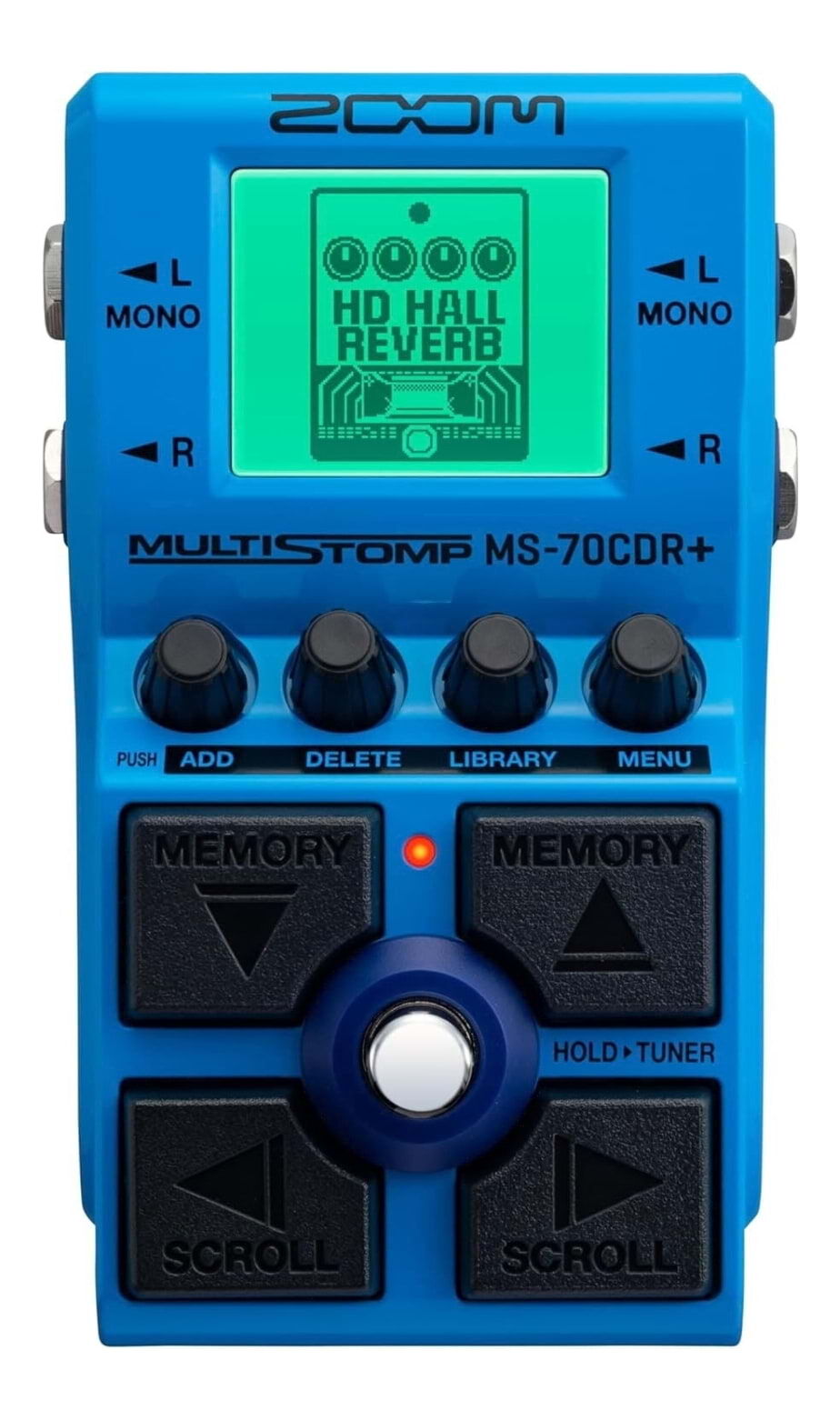

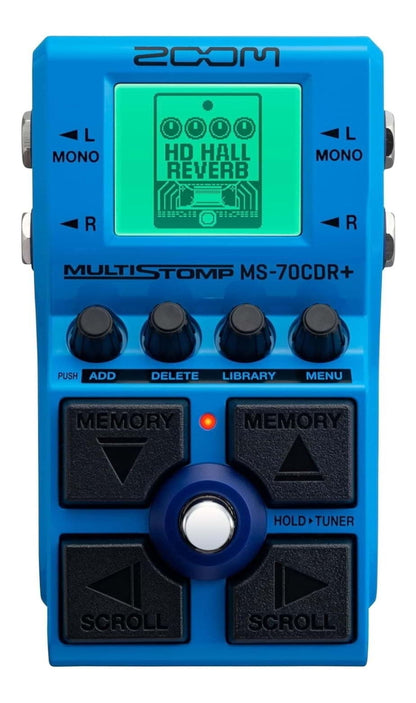

ZOOM MS-70CDR+ MultiStomp Chorus, Delay & Reverb Effects Pedal

The Zoom MS-70CDR+ MultiStomp is a versatile multi-effects pedal for guitar and bass, featuring 149 effects covering chorus, modulation, delay, reverb, dynamics and filters. With support for up to six simultaneous effects, it offers extensive sound-shaping options in a compact, pedalboard-friendly design.

From vintage modulation and rhythmic delays to lush reverbs and atmospheric textures, the MS-70CDR+ makes it easy to create and customise sounds for live performance, rehearsal and recording. Stereo inputs and outputs provide expanded connectivity, while the intuitive interface and onboard tuner make it a practical addition to any pedalboard.

Features

• 149 built-in effects, including chorus, modulation, delay, reverb, dynamics and filters.
• 43 chorus and modulation effects, including phasing, flanging, tremolo, vibrato and pitch shifting.
• 29 mono and stereo delay effects with delay times of up to 4 seconds.
• 33 reverb effects, including room, hall, arena, plate and spring simulations.
• 44 dynamics and filter effects, including EQ, compression and noise reduction.
• Up to six effects simultaneously, arranged in any order.
• 100 user patch memories and 80 preset patches.

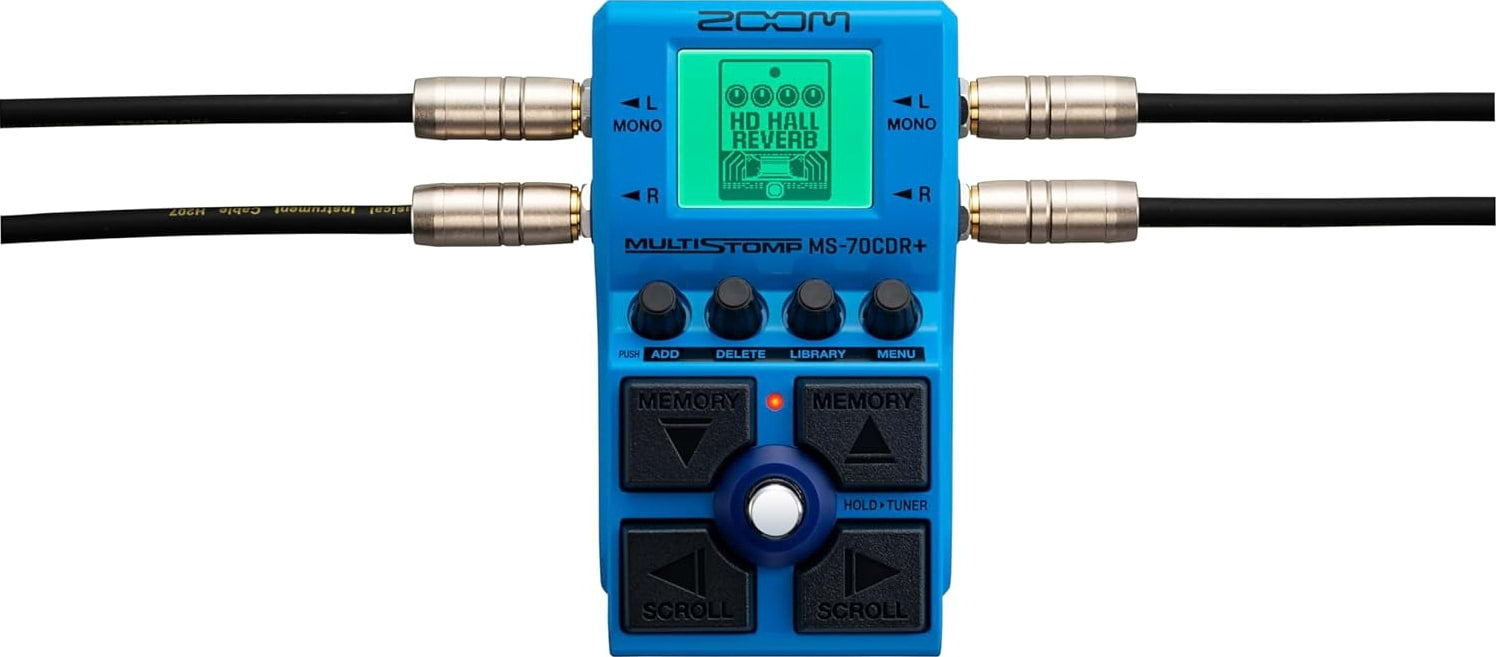

• Stereo inputs and outputs for expanded routing and stereo effects.
• Four Cross Key switches for convenient patch selection and navigation.
• Colour-coded LCD backlight for easy effect identification.
• Built-in chromatic tuner with bypass or mute options.
• USB-C connectivity with USB MIDI for remote patch changes.
• Compatible with the Handy Guitar Lab app for iOS.
• Durable metal chassis designed for live performance.

Specifications

• Number of effects: 149
• Maximum simultaneous effects: 6
• Patch memories: 100 user patches, 80 presets
• Sampling frequency: 44.1 kHz
• A/D conversion: 24-bit, 128× oversampling
• D/A conversion: 24-bit, 128× oversampling
• Signal processing: 32-bit floating point and 32-bit fixed point
• Frequency response: 20 Hz–20 kHz (+0.5 dB/−0.5 dB)
• Display: 160 × 128 dot-matrix LCD
• Inputs: Stereo L/R standard mono phone jacks
• Rated input level: −20 dBu
• Input impedance: 470 kΩ
• Outputs: Stereo L/R standard mono phone jacks
• Maximum output level: +7.2 dBu
• Signal-to-noise ratio: 122 dB
• Residual noise: −100 dBu

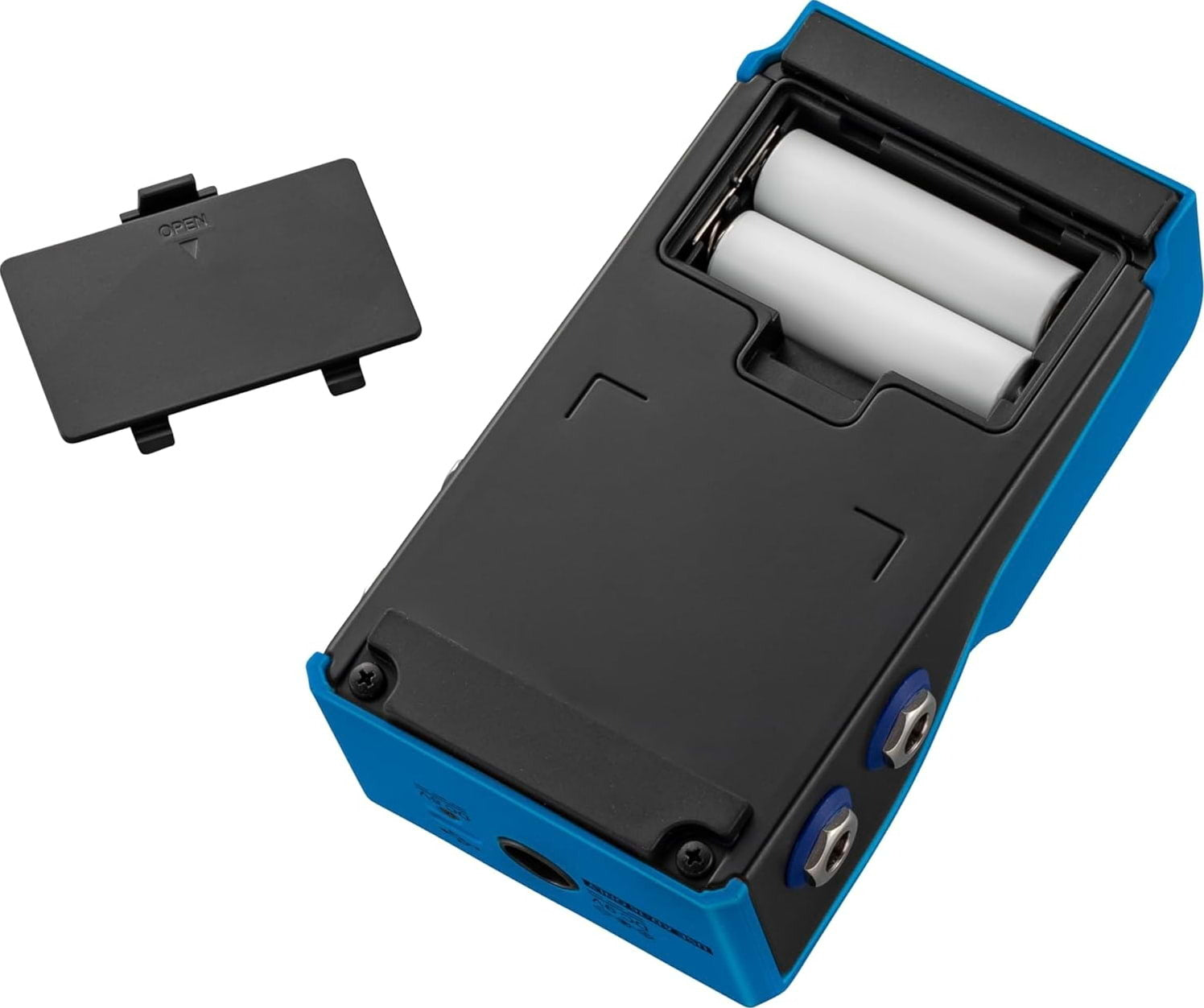

• Power requirements: 2 × AA batteries or optional 9V DC, 500 mA centre-negative adaptor
• Battery life: Up to 7 hours with alkaline batteries (approximately 5 hours in stereo operation)
• USB: USB 2.0 Type-C

Dimensions (D × W × H): 133 × 79 × 61 mm
