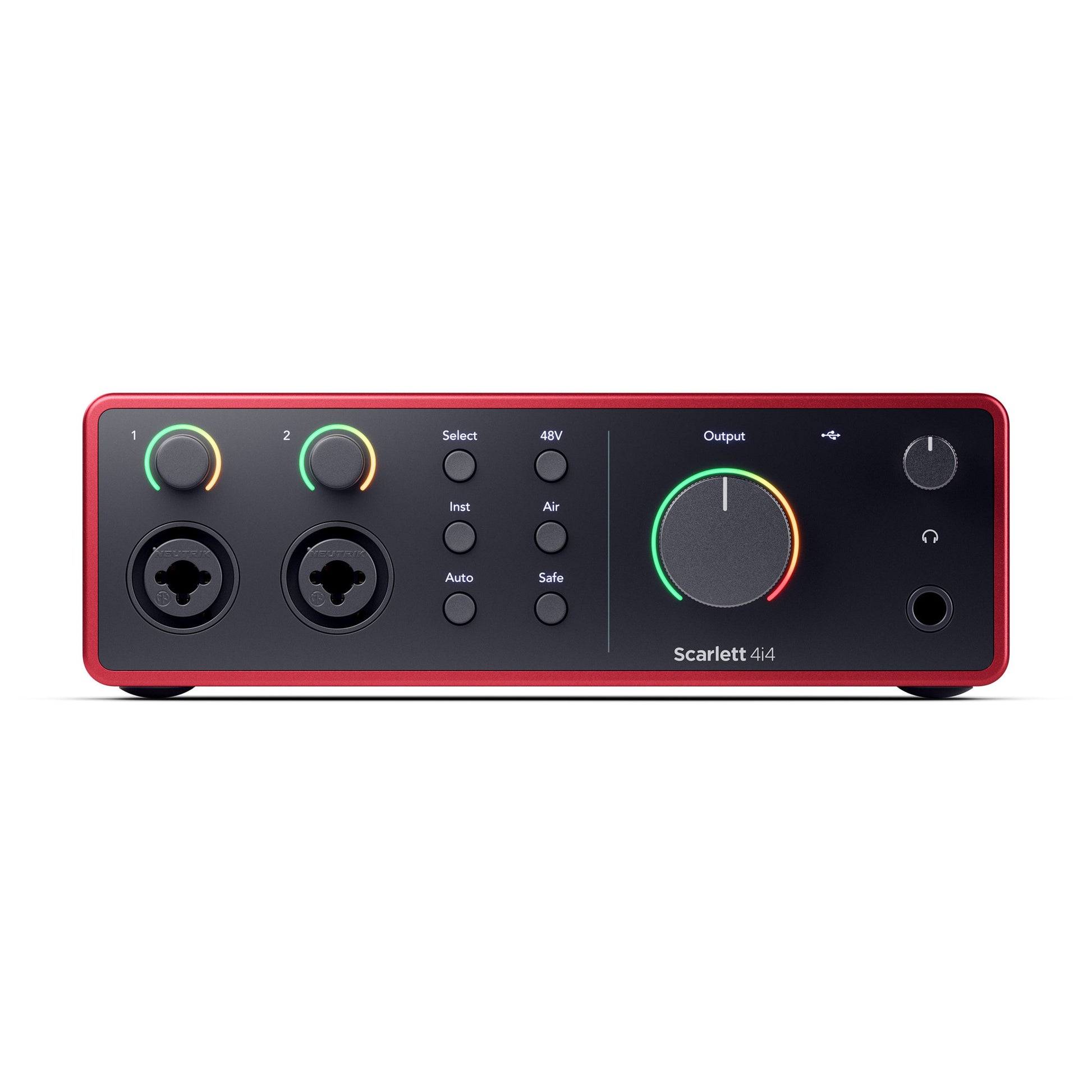

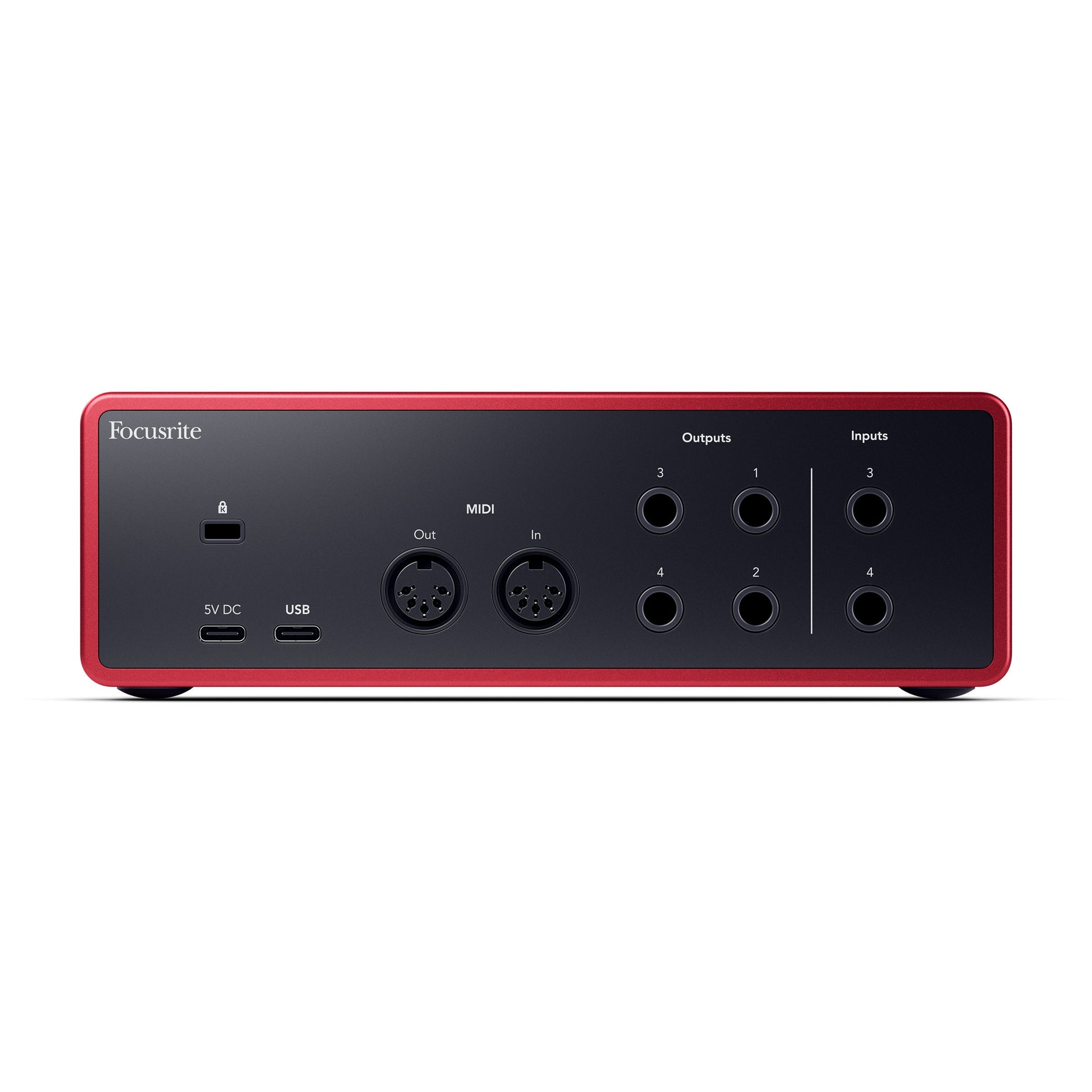

FOCUSRITE SCARLETT GEN4 4I4 USB-C INTERFACE

Scarlett 4i4 is the complete compact studio hub for all your instruments. Perfect for multi-instrumentalists and collaborators, 4i4 is loaded with I/O for everything. Two of our most detailed ultra-low-noise mic preamps. Hi-Z, line and MIDI connections for your keys, guitars, synths, grooveboxes and controllers. With 4i4 your headphones, monitors, and line outs each get their own mix, so you can match the studio setup to the session.

Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. Auto Gain and Clip Safe make sure you'll never need to worry about your levels. And the Hitmaker Expansion software bundle includes all the tools you need to record, produce and release your tracks.



{\rtf1\ansi\deff0\nouicompat{\fonttbl{\f0\fnil\fcharset0 Arial;}{\f1\fnil Arial;}} {\colortbl ;\red0\green0\blue0;} {\*\generator Riched20 10.0.22000}\viewkind4\uc1 \pard\cf1\fs16\lang1033 Focusrite Scarlett 4i4 USB-C Audio Interface (Gen 4) - The Focusrite Scarlett 4i4 audio interface is ready to make recording all your instruments even easier, featuring I/O for anything\f1\emdash mics, keys, guitars and MIDI devices\emdash two of Focusrite\rquote s most detailed ultralow-noise preamps, four super-high-quality line inputs studio-grade converters with a huge 120dB dynamic range. Auto Gain Clip Safe setting levels quick easy, so every take keeper. A complete toolkit includes Pro Tools Artist, Ableton Live Lite the Hitmaker Expansion software bundle Softube Marshall Silver Jubilee 2555 guitar, Addictive Keys Drums from XLN Audio, Antares Auto-Tune Access, Native Instruments MASSIVE more. An amped-up headphone output also included hi-res, playback anywhere.Find Your Signature SoundFor standout lead vocal instrument tracks, Scarlett\rquote s re-engineered Air mode takes sound\rquote s unique character brings it front mix, adding truly musical presence rich harmonic drive, just like classic console in big money studio. Trust us, you'll never want record without it. Scarlett's Dynamic Halos easy any mic\emdash or select let do you. Hit button play ten seconds, will set perfect level whatever you\rquote re recording.Set up mics voice guitar plug into 4i4\rquote s 4th-Generation preamps\emdash Scarlett\rquote s clearest ever, 69dB gain Hook an electric one 4i4's hi-Z inputs\emdash it feels amp. Plug synths grooveboxes straight inputs. Connect favorite outboard gear additional outputs. professional sound quality recording.Capture Every DetailHit red 192kHz, 24-bit direct flagship RedNet interfaces\emdash as found countless high-end studios around world. Squeeze last drop detail out recordings sacrificing quality.A custom-designed amp range stage best you've ever heard Scarlett. drives high impedance headphones louder clearer than before. With outputs, you can easily connect different monitor setups. has independent controls monitors record, mix back however want. Need samples? Make own Loopback. Send stereo music apps other DAW virtual You use Loopback computer livestreams. tell Easy Start tool how Scarlett, guide through setup need, tips oth4th-G Pro Audio, Recording Gear, Audio Interfaces.\f0\par }





Specifications in detail

Overview

• Number of Microphone Preamps2
• Phantom PowerYes
• Instrument Inputs2
• Line Inputs4
• Air ModeYes
• Auto GainYes
• Clip SafeYes
• Line Outputs4
• Headphone Outputs1
• LoopbackYes
• MIDIYes
• ConnectivityUSB Type-C
• ProtocolUSB 2.0
• Form FactorDesktop
• Simultaneous I/O6 x 6 (including Loopback inputs)
• A/D Resolution24-bit/192 kHz
• Bus PoweredYes (1.5A)

Dimensions

• Height60mm
• Width180mm
• Depth130mm
• Weight0.798kg

Supported sample rates

• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs

• Frequency Response20-20kHz ± 0.06dB
• Dynamic Range116dB (A-Weighted)
• THD+N-100dB @ 8dB gain
• Noise EIN-127dBu (A-Weighted)
• Maximum Input Level16dBu
• Gain Range69dB
• Impedance3kΩ

Variable Line inputs

• Frequency Response20-20kHz ± 0.05dB
• Dynamic Range115.5dB (A-Weighted)
• THD+N-100dB @ 8dB gain
• Maximum Input Level22dBu
• Gain Range69dB
• Impedance60kΩ

Fixed Line inputs

• Frequency Response20-20kHz ± 0.02dB
• Dynamic Range115.5dB (A-Weighted)
• THD+N-105dB
• Maximum Input Level22dBu
• Impedance60kΩ

Instrument inputs

• Frequency Response20-20kHz ± 0.15dB
• Dynamic Range113dB (A-Weighted)
• THD+N-80dB @ minimum gain
• Maximum Input Level12dBu
• Gain Range62dB
• Impedance1MΩ

Line outputs (Balanced)

• Frequency Response20-20kHz ± 0.02dB
• Dynamic Range120dB
• THD+N-112dB
• Maximum Output Level16dBu
• Impedance100Ω

Headphone outputs

• Frequency Response20-20kHz ± 0.1dB @ 33Ω / 300Ω
• Dynamic Range112dB @ 33Ω
  115dB @ 300Ω
• THD+N-99dB @ 33Ω
  -108dB @ 300Ω
• Maximum Output Level5dBu into 33Ω
  11dBu into 300Ω
• Maximum Output Power57mW into 33Ω
  27mW into 300Ω
• Impedance11Ω

Analogue to Digital Converter

• THD+N-110dB
• Dynamic Range120dB

Digital to Analogue Converter

• THD+N-115dB
• Dynamic Range130dB (A-Weighted)

Power

• USB1.5A
• External (Optional)7.5W

What's in the box

• Scarlett 4i4 audio interface
• 1m USB-C to USB-C cable
• USB-C to USB-A adaptor

External power supply
