EIKON XLR UHF WIRELESS MICROPHONE SYSTEM

Eikon UXLR Wireless XLR Transmission System – UHF

The Eikon UXLR is a compact UHF wireless system designed to transmit audio signals between XLR connections without the need for cables. Ideal for connecting mixers to powered speakers, it can also turn compatible dynamic or condenser microphones into wireless microphones, with selectable mic/line sensitivity and phantom power support.

Features

• UHF PLL digital wireless transmission
• 30 selectable frequency channels
• Frequency range: 568.500–580.100MHz
• DQPSK modulation
• Wireless range up to 30 metres
• Selectable microphone/line input sensitivity
• Phantom power support for compatible condenser microphones
• Audio dynamic range: 106dB
• Signal-to-noise ratio: greater than 102dBA
• Total harmonic distortion: less than 0.5%
• Built-in 3.7V / 800mA lithium batteries
• Battery life: approximately 3–5 hours
• USB-C charging
• Charging time: approximately 3 hours for transmitter and 4 hours for receiver

What's in the Box

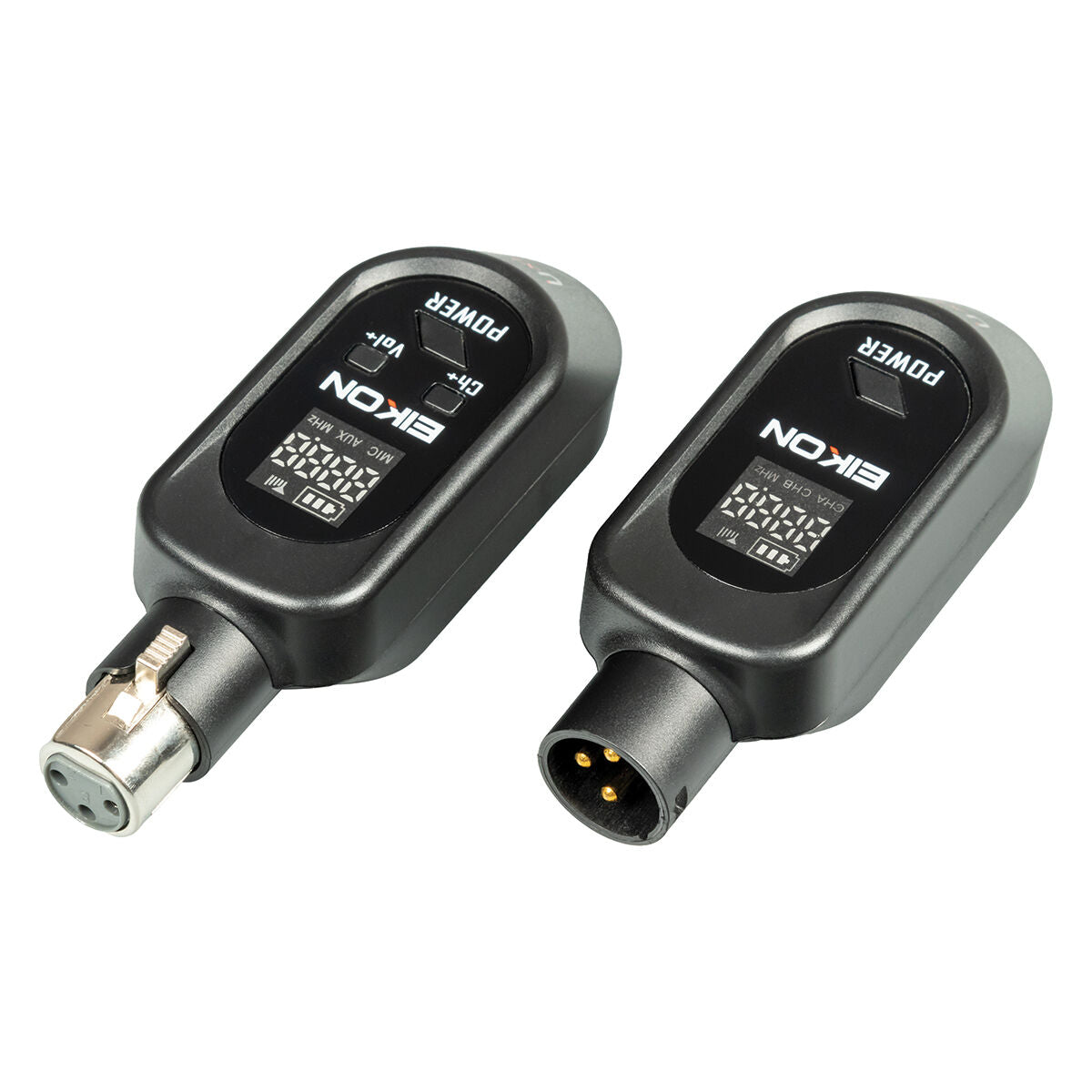

• 1 x XLR transmitter
• 1 x XLR receiver

1 x USB-C charging cable
