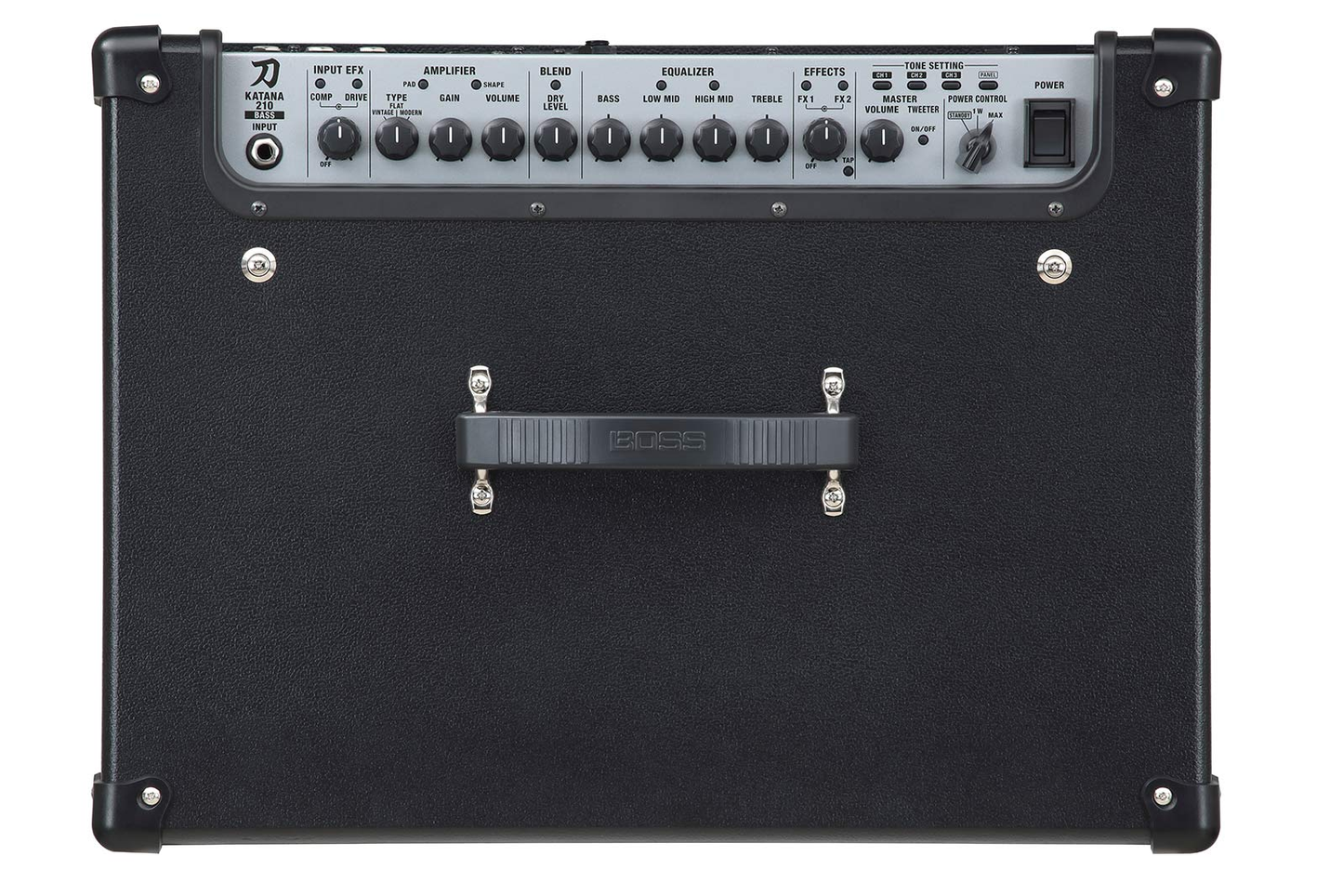

BOSS KATANA - 210 BASS AMPLIFIER

Output Power - 160 W Continuous (RMS), 300 W Peak
Nominal Input Level -
INPUT: -10 dBu (1 M ohm)
POWER AMP IN: -10 dBu (20 k ohms)
AUX IN: -10 dBu (20 k ohms)
RETURN IN: -10 dBu (100 k ohm)
Speaker - WOOFER: 25 cm (10 inches) x 2, TWEETER: x 1
Controls - POWER switch, MASTER VOLUME knob, POWER CONTROL switch (STANDBY, 1 W, MAX), TWEETER button
INPUT EFX - COMP button, DRIVE button, COMP knob, DRIVE knob
AMPLIFIER - PAD button, SHAPE button, TYPE knob (VINTAGE, FLAT, MODERN), GAIN knob, VOLUME knob
BLEND - BLEND button, DRY LEVEL knob
EQUALIZER - LOW MID button, HIGH MID button, BASS knob, LOW MID knob, HIGH MID knob, TREBLE knob
EFFECTS - FX1 button, FX2 button, TAP button, FX1 knob, FX2 knob
TONE SETTING - CH1 button, CH2 button, CH3 button, PANEL button
BALANCED OUT - GND LIFT switch (OFF, ON), SELECT (POST, PRE, DIRECT)
Indicators - COMP, DRIVE, PAD, SHAPE, BLEND, LOW MID, HIGH MID, FX1, FX2, TAP, CH1, CH2, CH3, PANEL, TWEETER
Connectors -
INPUT jack: 1/4-inch phone type
POWER AMP IN jack: 1/4-inch phone type
BALANCED OUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
SPEAKER OUT 4 ohms jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB B type
BLUETOOTH ADAPTOR SLOT: Bluetooth? Audio MIDI Dual Adaptor
AC IN - jack
Power Consumption - 117 W
Accessories - Owner's manual, Power cord, GA-FC sticker
Bluetooth? Audio - MIDI Dual Adaptor (Model BT-DUAL)
SIZE AND WEIGHT -
Width - 490 mm
Depth - 360 mm
Height - 620 mm
Weight - 21.8 kg
