BOSS CS3 COMPRESSOR/SUSTAINER PEDAL

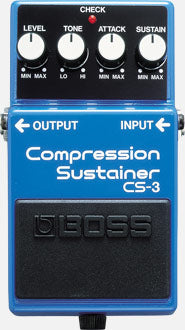

BOSS CS-3 Compression Sustainer

The BOSS CS-3 Compression Sustainer pedal is designed to balance dynamic range, providing smooth compression, enhanced sustain, and precise tone shaping for both guitarists and bassists.

Key Features

• Dynamic Compression: Compresses loud signals and boosts softer ones to create a balanced, smooth sound.
• Sustain Control: Enhances sustain without sacrificing tonal clarity, perfect for solos and long notes.
• Customizable Tone Shaping: Onboard Level, Tone, Attack, and Sustain knobs allow for precise adjustments to suit any playing style.
• Low-Noise Design: High-quality circuitry ensures quiet operation, even with higher compression levels.
• Durable Build: Compact design and a robust construction backed by BOSS’s five-year warranty.

Specifications

Input/Output

• Nominal Input Level: -20 dBu
• Input Impedance: 1 MΩ
• Nominal Output Level: -20 dBu
• Output Impedance: 1 kΩ
• Recommended Load Impedance: 10 kΩ or greater

Power

• Power Supply Options:
  • 9V Carbon-Zinc or Alkaline Battery
  • AC Adaptor (PSA series, sold separately)
• Current Draw: 20 mA
• Battery Life:
  • Carbon-Zinc: ~10.5 hours
  • Alkaline: ~26 hours

Controls

• Knobs:
  • SUSTAIN: Adjusts the amount of compression and sustain.
  • ATTACK: Controls the response time of the compression.
  • TONE: Shapes the tonal character.
  • LEVEL: Sets the output volume.
• Pedal Switch: Engages/disengages the effect.

Bypass

• Buffered bypass design to maintain signal quality.

Dimensions and Weight

• Width: 73 mm (2-7/8 inches)
• Depth: 129 mm (5-1/8 inches)
• Height: 59 mm (2-3/8 inches)
• Weight: 380 g (14 oz, including battery)

Included Accessories

• Safety and Information Leaflets
• 9V Carbon-Zinc Battery

Optional Accessories

• AC Adaptor (PSA Series)

Performance Use Cases

• Clean Playing: Smooth out dynamics for a polished and professional tone in clean settings.
• Lead Guitar: Enhance sustain and articulation for expressive solos.
• Bass Guitar: Tighten the low-end response for a consistent and punchy sound.
• Rhythm Guitar: Balance chord dynamics for a cohesive rhythm section.

The BOSS CS-3 Compression Sustainer is an essential tool for players seeking improved dynamics and tonal control, making it a staple on pedalboards for live performances and studio recording alike.
